GPU Server Supermicro For Data Science University

GPU Server Supermicro For Data Science University

DP Intel 2U Liquid-Cooled System with NVIDIA HGX H100 4-GPU

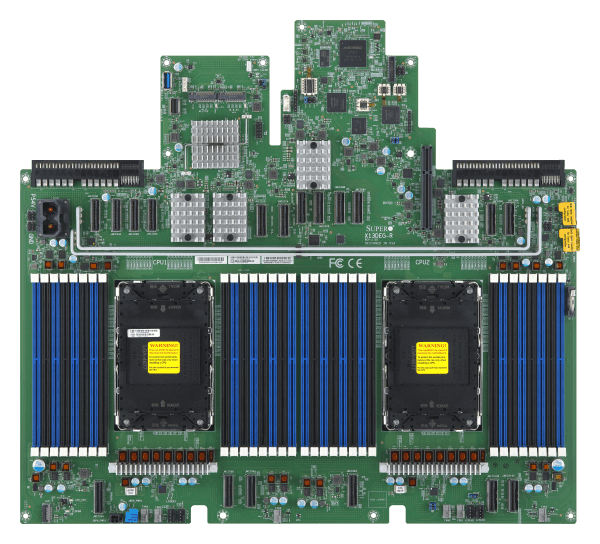

Integrated Board: X13DEG-R
Learn more

Key Applications

  • High Performance Computing
  • AI/Deep Learning Training
  • Industrial Automation, Retail
  • Healthcare
  • Conversational AI
  • Business Intelligence & Analytics
  • Drug Discovery
  • Climate and Weather Modeling
  • Finance & Economics

Key Features



    • Highest GPU communication using NVIDIA® NVLINK™
    • High density 2U system with NVIDIA® HGX™ H100 4-GPU
  2. 5th/4th Gen Intel® Xeon® Scalable processor support
  3. 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
  4. 4 PCIe Gen 5.0 X16 LP
Specifications Resources & Downloads
Product SKUs
SuperServer SYS-221GE-TNHT-LCC
Motherboard
Super X13DEG-R
Processor
CPU
Core Count
  • Up to 56C/112T; Up to 112.5MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • Up to 4 onboard GPUs
Supported GPU
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink®
System Memory
Memory
  • Slot Count: 32 DIMM slots/16 Channels
  • Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
  • View Memory Options
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
Input / Output
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8+4 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-228G2TS-R5K25P
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 32.7″ (830.3 mm)
Package
  • 11″ (H) x 22.5″ (W) x 45.5″ (D)
Weight
  • Gross Weight: 86.5 lbs (39.2 kg)
  • Net Weight: 67.5 lbs (30.6 kg)
Available Color
  • Silver Body
Front Panel
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED
Buttons
  • Power On/Off button
  • System Reset button
Expansion Slots
PCI-Express (PCIe) Configuration
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)/2280)
Drive Bays / Storage
Drive Bays Configuration
M.2
System Cooling
Fans
  • 4 Fan 8cm Fan(s)
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
2x 5250W Redundant Titanium (certification pending) Level (96%) power supplies
Dimension (WxHxL) 106.5 x 82.1 x 245.3 mm
AC Input 5250W: 200-240Vac / 50-60Hz
+12V Max: 125A / Min: 0A (200Vac-240Vac)
Output Type Backplanes (gold finger)
Certification 94%+  Titanium (certification pending) Level

[ Test Report ]
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
